Vulcan Series Hybrid Component recorder

V862HC 8-channel recorder for mixed HD and IP coverage.

Created for smaller transit or school bus configurations, V862HC records up to eight camera views: six HD channels up to 1080P and two IP channels up to 4K/8MP resolution.

Request V862HC information View specs

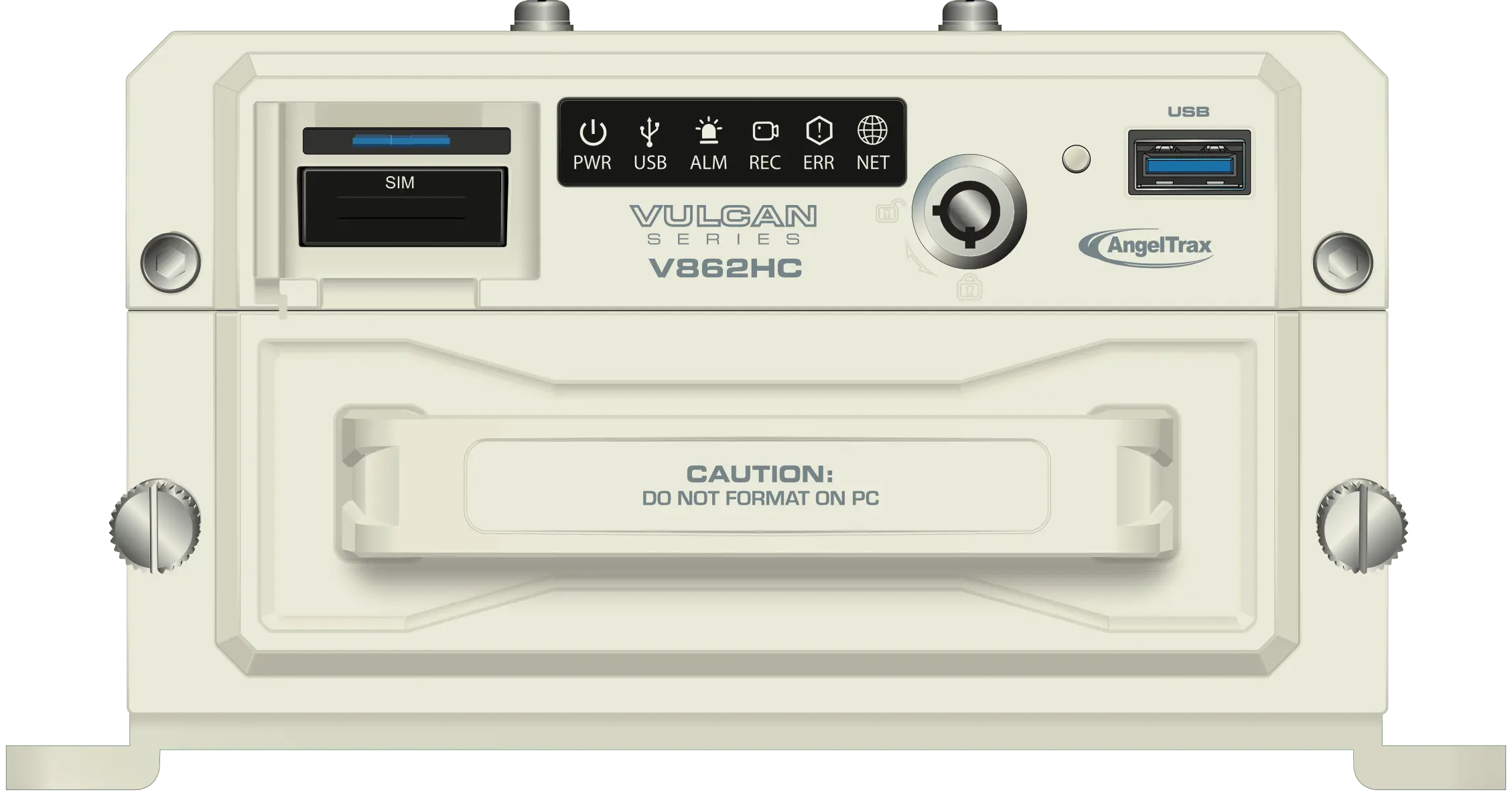

AngelTrax V862HC 8-channel Hybrid Component mobile video recorder. V862HC alternate product view.
8-channel system
Up to 4K/8MP IP
Up to 10TB HDD
8-channel system6 HD channels plus 2 IP channels
Up to 4K/8MP IPHigher-detail IP camera support
Up to 10TB HDDOr M.2 SATA SSD storage
Hybrid ComponentPatented mixed-camera technology
AngelTrax V862HC 8-channel Hybrid Component mobile video recorder.

Product overview

V862HC 8-Channel Hybrid Component Mobile DVR

AngelTrax V862HC records up to eight interior and exterior camera views with six HD channels up to 1080P, two IP channels up to 4K/8MP, optional high-capacity storage, redundant microSD recording and patented Hybrid Component Technology.

Six HD channelsRecord up to six HD channels at up to 1080P.
Two IP channelsAdd up to two IP channels at up to 4K/8MP resolution.
Flexible storageUse a 3.5-inch HDD up to 10TB with optional fan kit or M.2 SATA SSD.
Redundant recordingA microSD card slot supports redundant recording.

Recording capabilities

Hybrid Component recording for mixed camera layouts.

V862HC helps teams combine broad HD camera coverage with higher-detail IP cameras where clarity matters most.

  • 8-channel recorder
  • 6 HD channels up to 1080P and 2 IP channels up to 4K/8MP
  • 3.5-inch HDD up to 10TB with optional fan kit or M.2 SATA SSD
  • microSD card slot for redundant recording
  • Patented Hybrid Component Technology
  • 5-year warranty

8 channels

Eight camera views for interior and exterior coverage.

Hybrid Component

Mix HD and IP camera feeds on one recorder.

Up to 10TB

High-capacity storage option.

5-year warranty

Long-term fleet product support.

Fleet applications

Fit V862HC into a complete mobile video workflow.

AngelTrax recorder pages work best when the product is tied to real operating needs: camera count, vehicle type, evidence retention, live access, remote downloads, route context and the teams that review footage after an event.

School bus representing AngelTrax recorder use on student transportation vehicles.

School buses

Support student transportation camera layouts, incident review, stop-related evidence and fleet visibility.

Learn more
Transit bus representing AngelTrax recorder use on public transportation vehicles.

Transit and rail

Record multiple interior, exterior, door, roadway and passenger-area views for public transportation teams.

Learn more
Commercial fleet vehicle representing AngelTrax recorder use on fleet vehicles.

Fleet vehicles

Give commercial, service and specialty fleets a recorder platform for camera evidence and connected review.

Learn more

Recorder specifications

Confirm the right V862HC configuration for your vehicles.

The live product page lists the core recorder capabilities below. Use the one sheet, tech specs or AngelTrax sales support to confirm channel count, camera mix, storage, redundancy and deployment fit.

Recorder typeMobile Digital Video Recorder
Channel mix6 HD channels up to 1080P plus 2 IP channels up to 4K/8MP
Storage3.5-inch HDD up to 10TB with optional fan kit or M.2 SATA SSD
RedundancymicroSD card slot for redundant recording
TechnologyPatented Hybrid Component Technology
Warranty5-year warranty
Collection of AngelTrax Vulcan Series mobile video recorders. AngelTrax video and data management software displayed on monitors.

Connected evidence platform

Pair recorder hardware with cameras, software and support.

Recorders are the center of the vehicle evidence workflow. AngelTrax pairs Vulcan Series recorders with HD and IP cameras, MotoTrax software, live view, remote downloads, health reporting, tracking and review tools for transportation teams.

Recorder lineupCompare Vulcan Series MDVR and MNVR systems. Camera lineupMatch recorder channels to HD, IP, specialty and AI camera views. MotoTrax softwareRemote live view, downloads, AVL, health reports and event review. Purchasing supportGet help matching recorder configurations to your fleet.

Documents and purchasing

Get V862HC documents and configuration support.

The live product page points visitors to the product one sheet, tech specs and the AngelTrax document downloads page. Those paths are preserved here so the preview remains useful for review and sharing.

Next steps

V862HC one sheet V862HC tech specs Document Downloads Contract Purchasing

Configure your recorder system

Build the right V862HC workflow for your fleet.

Tell AngelTrax about your vehicles, camera count, storage needs, wireless workflow and evidence review process. We can help map the right recorder into a complete mobile video system.

Contact sales 1-800-673-1788
